Easton Target Arrows - x10 Protour

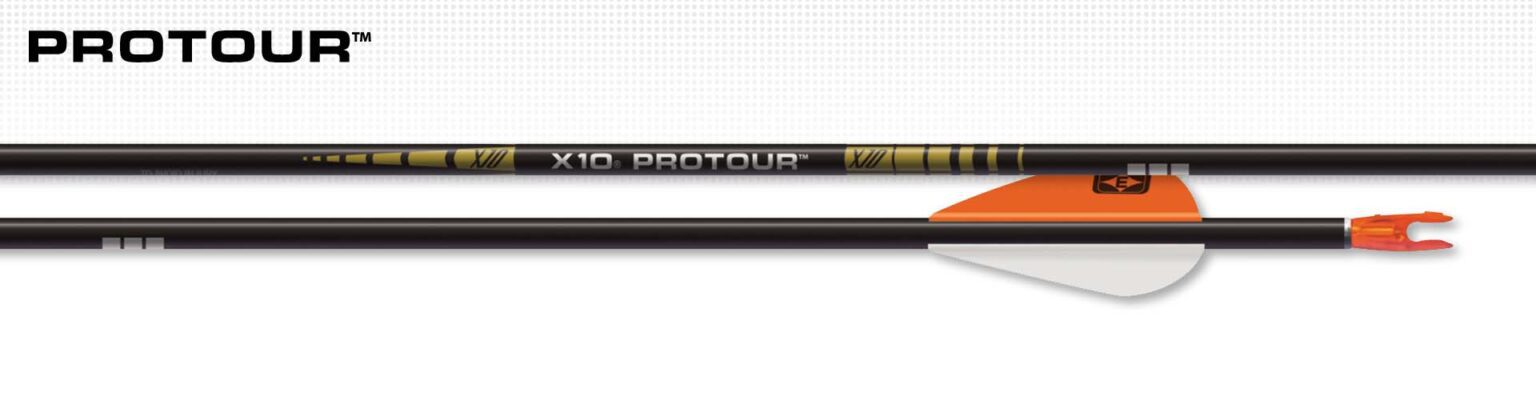

X10 PROTOUR

ABOUT THE PRODUCT

Since its introduction, the compound-specific X10 Protour has won more titles and set more records for compound archers than all other choices.

SPECIFICATIONS
  • Lightweight, high-modulus carbon fiber bonded to a precision 7075 alloy core
  • Polished black carbon finish
  • Straightness ± .0015″
  • Weight tolerance: ± 0.5 grains
  • Components—sold separately
  • Tapered design
  • MADE IN USA
Size Shaft Weight
GPI
Spine @ 28″ Span
Deflection in inches
Shaft O.D.
Inches
Stock Length
Inches
Max Trim
Inches
Recommended Point Weight Range
7706.00.770.18129No Limit90-110
7206.20.720.18329.75No Limit90-110
6706.50.670.18629.754.0100-110
6206.70.620.188304.5100-110
5706.90.570.191315.0100-120
5207.30.520.194325.5100-120
4707.60.470.19833.256.0100-120
4208.00.420.20233.756.5100-120
3808.40.380.207347.0100-120
3408.80.340.213347.0100-120
1. Due to the taper design of the X10 Pro Tour, the grain weight-per-inch shown is an average weight-per-inch of a 29″ shaft. Shaft weight is slightly heavier toward the larger-diameter nock end and lighter toward the tapered front end. One inch of shaft cut from the point end typically weighs 6-7 grains.
2. Nominal O.D. at mid-point of shaft. Front end is smaller.
3. Recommended that no more than these lengths be cut from the front of the shaft.

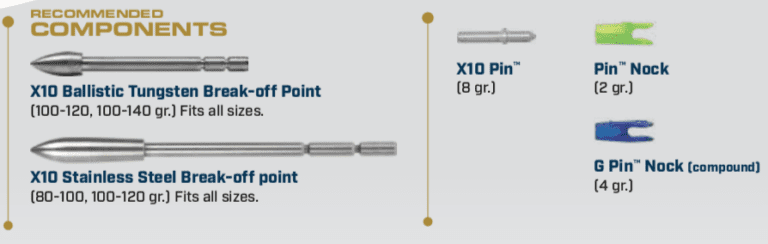

COMPONENTS
