Superdrive 23
ABOUT THE PRODUCT
SuperDrive 23 is the World Archery Maximum Compliant Diameter carbon arrow for compound shooters looking for success with indoor and 3D competition. A proven winner on the world indoor stage, Superdrive 23 is built to be the toughest, most accurate 23 diameter all-carbon shaft ever made by Easton. Available in three precision spine sizes to match competitive compound setups. Now available is the new Superdrive 23 adjustable point system for fine-tuning and optimizing balance and speed.
SPECIFICATIONS
- High-strength high-modulus reinforced carbon fiber
- Polished black carbon finish
- Straightness: ± .002”
- Weight tolerance: ± 0.5 grains per dozen pack
- Outside diameter: 23/64″ (9.3mm)
- World Archery compliant maximum 9.3 mm (23XX) diameter
- Inserts, points, and nocks—sold separately
- Super or G UNI Bushings—included
- NEW weight adjustable point system available—sold separately
- Pin nock system adapter—sold separately
| Size | Shaft Weight GPI | Spine @ 28″ Span Deflection in inches | Shaft O.D. Inches | Stock Length Inches | Super Uni Bushing (Grains) | G Uni Bushing (Grains) | One-Piece Point |
|---|---|---|---|---|---|---|---|
| 325 | 7.4 | 0.325 | .361 | 33.25 | 19 | 18 | 100 & 125 |
| 375 | 6.9 | 0.375 | .359 | 32.00 | 19 | 18 | 100 & 125 |
| 475 | 6.4 | 0.475 | .356 | 31.50 | 19 | 18 | 100 & 125 |

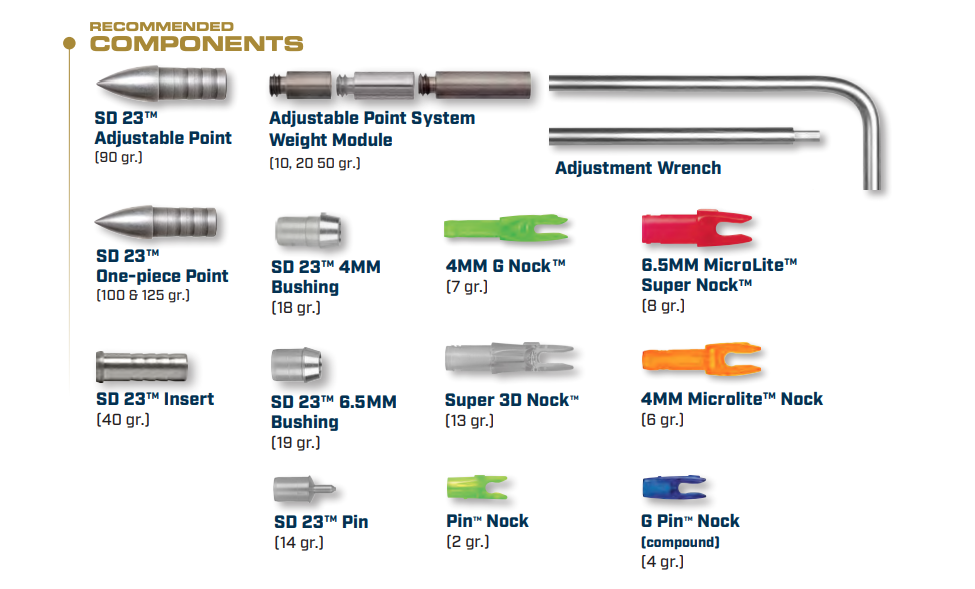

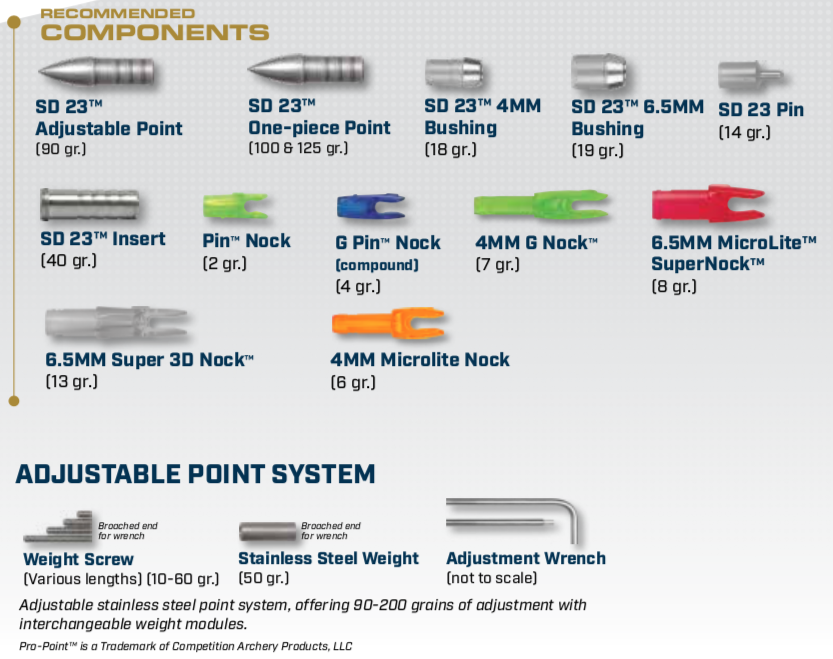

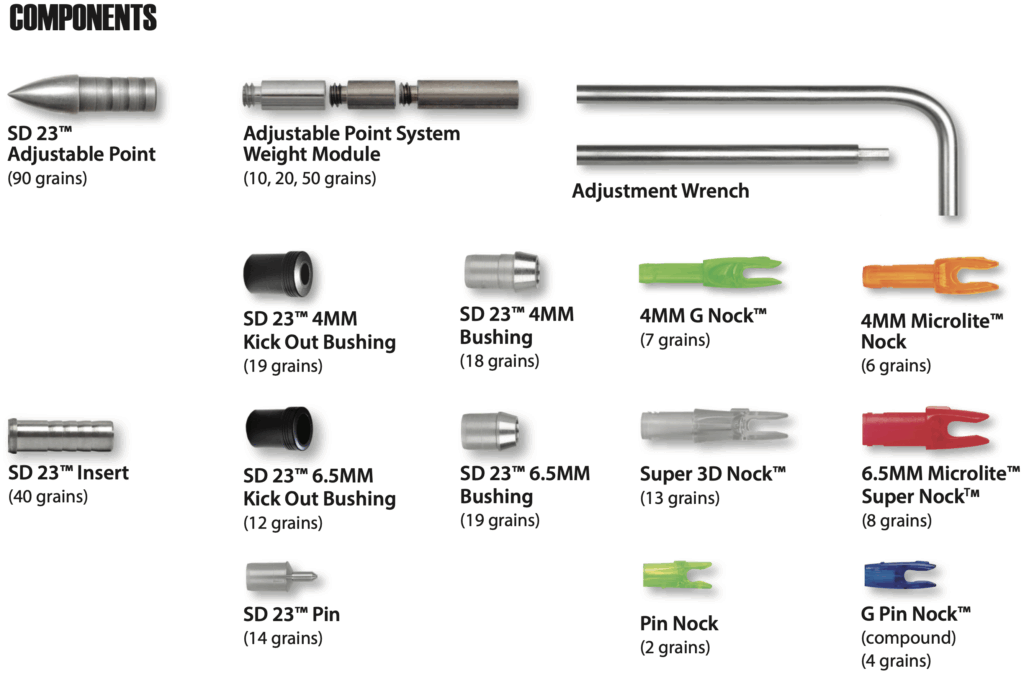

COMPONENTS
