X4™ Podium Grade & Standard Grade
| SPINE | SHAFT WEIGHT GPI | SHAFT O.D. INCHES | STOCK LENGTH INCHES | 4MM HL POINT FITMENT | 4MM ML POINT FITMENT | 4MM PIN FITMENT | 4MM NOCK COLLAR |
|---|---|---|---|---|---|---|---|
| 340 | 8.3 | 0.234 | 33.25 | #3.5 | #4 | #4 | #4.5 |
| 400 | 7.6 | 0.229 | 33 | #3 | #3.5 | #3.5 | #4 |
| 450 | 7.2 | 0.2295 | 32.75 | #3 | #3.5 | #3.5 | #4 |
| 500 | 6.7 | 0.2233 | 32.5 | #2 | #3 | #3 | #3.3 |
| 550 | 6.3 | 0.2224 | 32.25 | #2 | #3 | #3 | #3.3 |
| 600 | 6.3 | 0.2196 | 32 | #2 | #2 | #3 | #3 |
| 650 | 6 | 0.2183 | 31.75 | #2 | #2 | #3 | #2.5 |
| 700 | 5.5 | 0.213 | 31.5 | #1 | #2 | #2 | #2 |
| 750 | 5.4 | 0.214 | 31.25 | #1 | #2 | #2 | #2 |
| 800 | 5.1 | 0.2109 | 31 | #2 | #1.5 | #1.5 | #1.5 |
| 850 | 5.1 | 0.2097 | 30.75 | #1 | #1.5 | #1.5 | #1.5 |
| 900 | 5 | 0.2112 | 30.5 | #1 | #1.5 | #1.5 | #1.5 |
ABOUT THE PRODUCT

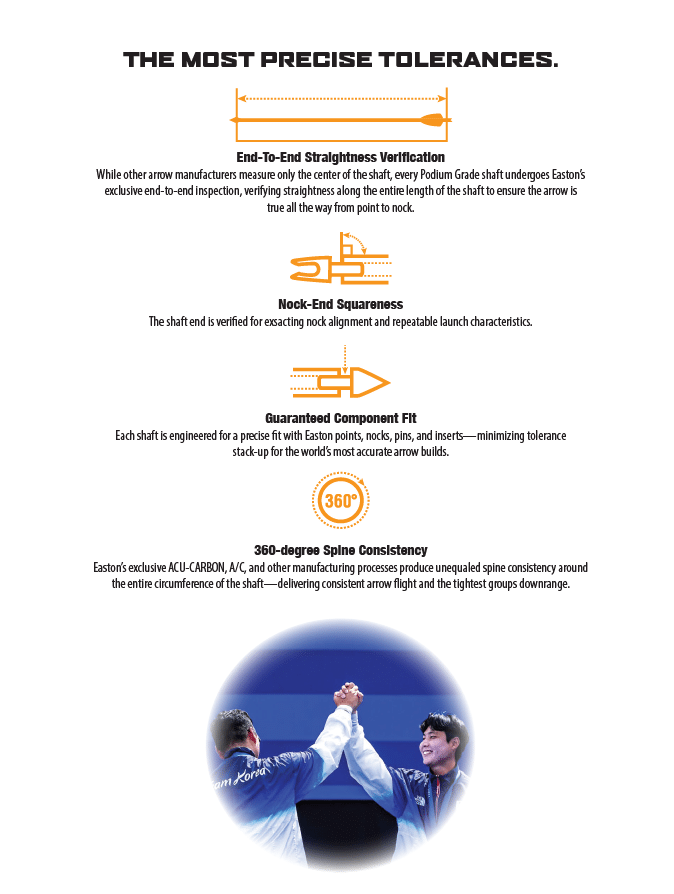

New X4 is Easton’s highest level 4mm Acu-Carbon tournament arrow. Featuring a seamless 167″ ID shaft construction and available in standard tier 2 (.003″) and the all-new Elite-Level Podium Grade version. Podium Grade is the culmination of over 100 years of arrow making expertise showcasing our finest technologies. For years, arrows were graded on center straightness alone. Podium Grade guarantees the 4 most-important aspects of target arrow precision including: Our best tier-1 straightness (Five-point straightness check) improved over previous .001″ for improved total shaft straightness; Seamless construction for consistent spine around the shaft – easier tuning; Nock-end cut precision squared to +/- .001″ of an inch and, a guaranteed no-sanding component fit with all Easton nocks and nock collars. Nock Pins included (Pin Nocks sold separately)

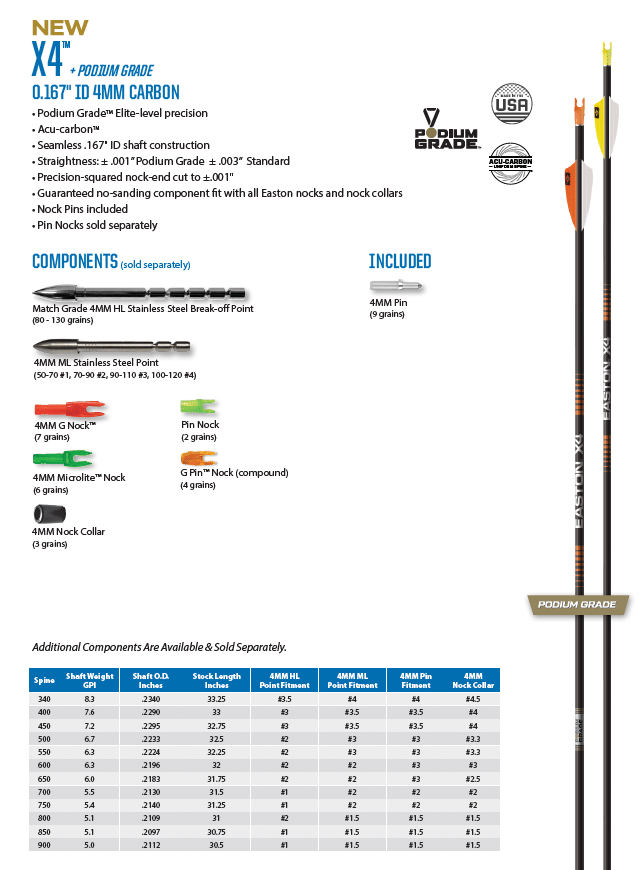

SPECIFICATIONS
0.167″ ID 4MM CARBON
• Podium GradeTM Elite-level precision
• Acu-carbonTM
• Seamless .167″ ID shaft construction
• Straightness: ± .001” Podium Grade ± .003” Standard
• Precision-squared nock-end cut to ±.001″
• Guaranteed no-sanding component fit with all Easton nocks and nock collars
• Nock Pins included
• Pin Nocks sold separately
