5mm FMJ® Autumn Orange

Size Shaft Weight
Spine @ 28″ Span
Deflection in inches
Stock Length
RPS Point
O.D. Inches
Broadhead Adapter Ring (5 grains)O.D.
Half Out Size
40010.20.40031.517/64BAR 30.263#2
34011.30.340329/32BAR 50.269#2
30012.00.300*32.59/32BAR 50.273#2
25011.50.250*339/32BAR 60.273#2

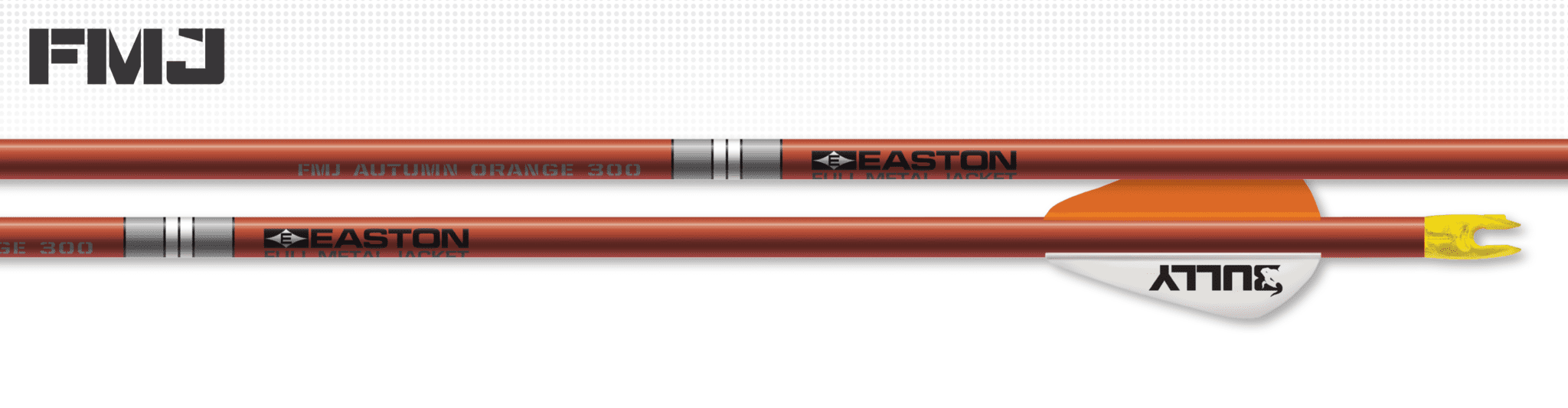

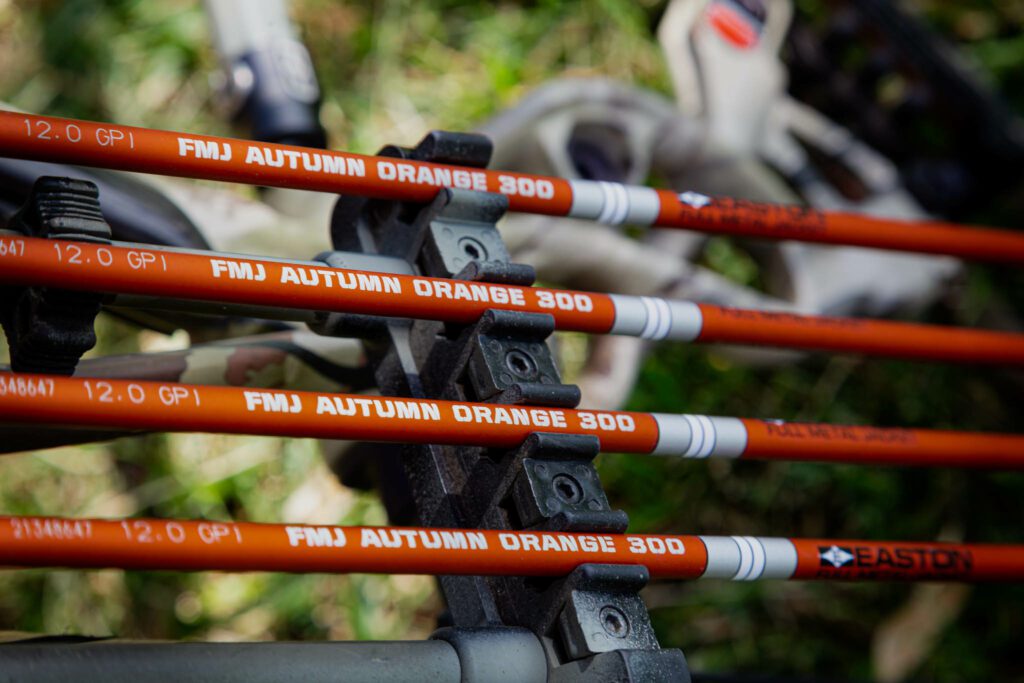

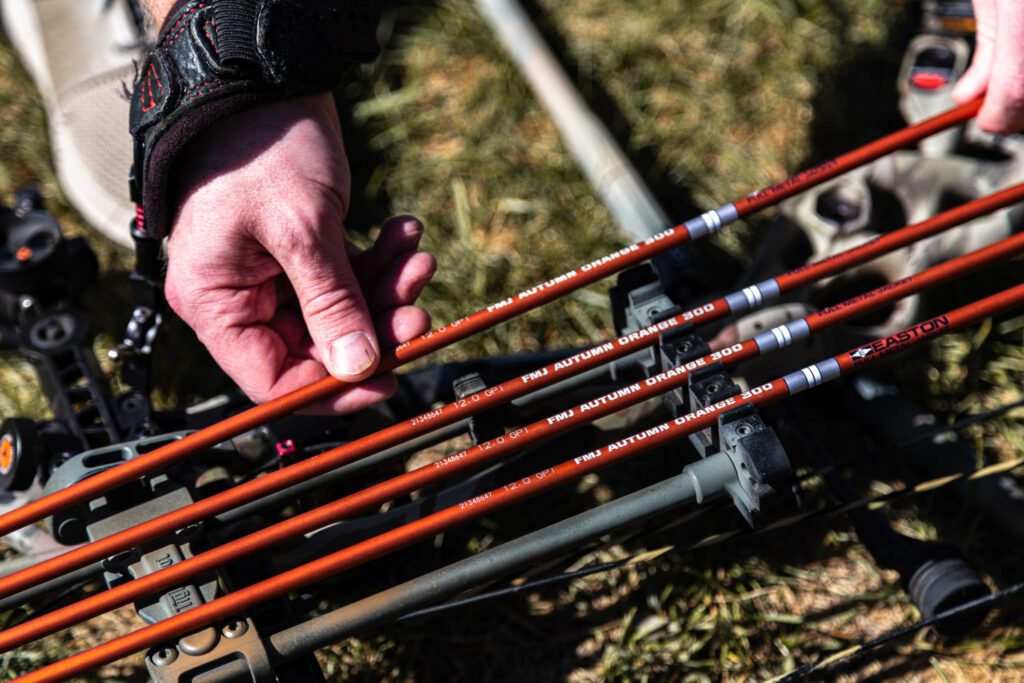

5MM FMJ Autumn Orange 100 Year Limited Edition


Celebrating Easton’s 100 years in archery, the 5MM Autumn Orange FMJ is a fresh take on an old favorite, featuring Easton exclusive FMJ arrow technology and finished with the classic Easton Autumn Orange anodize, this limited edition offering gives archers a modern arrow with throwback nostalgia to the arrows they may have put in their first quiver. Available in four popular sizes (250, 300, 340 and 400 spine), includes HIT inserts and 5mm X Nocks installed.


Maximum Penetration, Ease of Pull

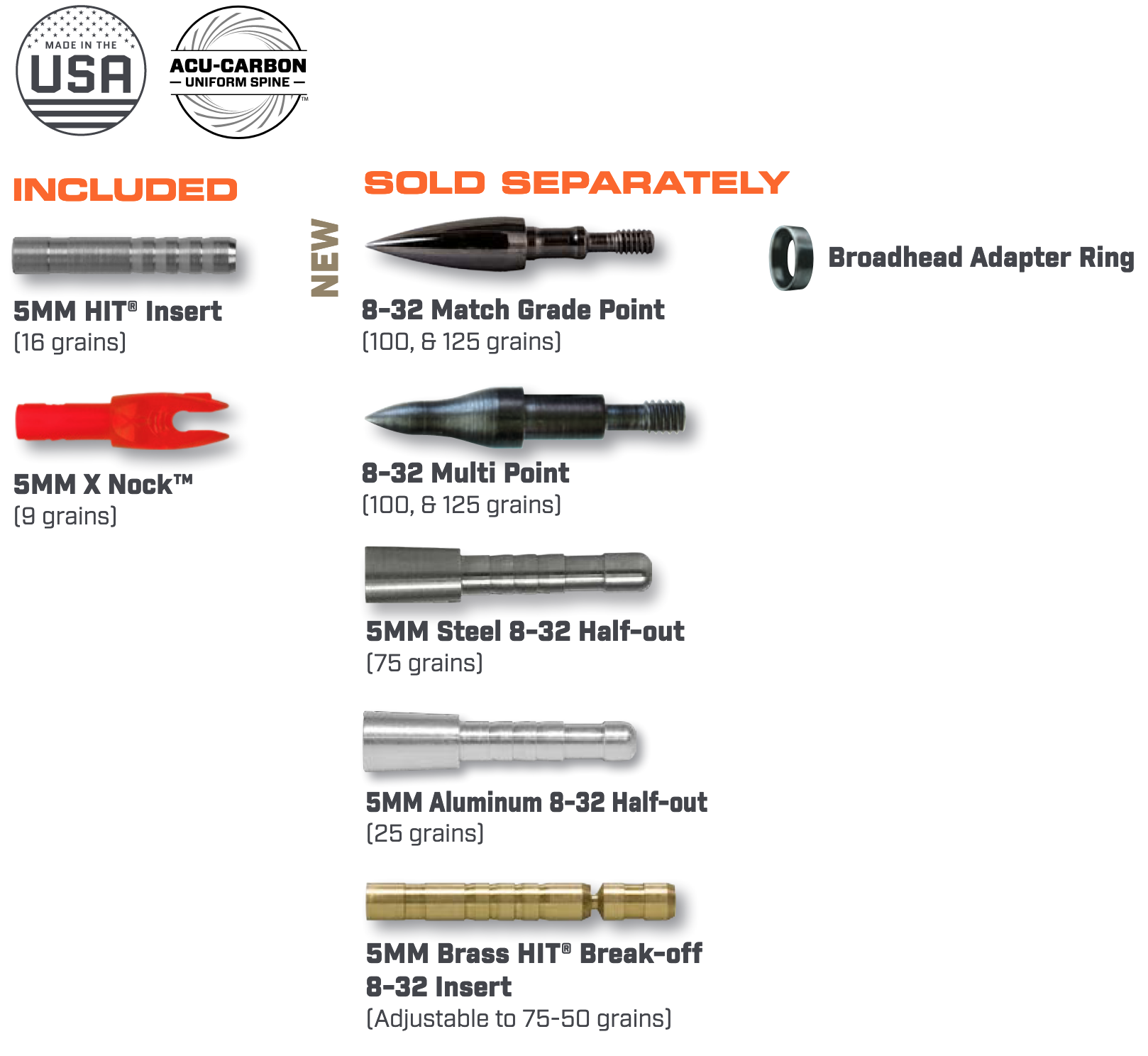

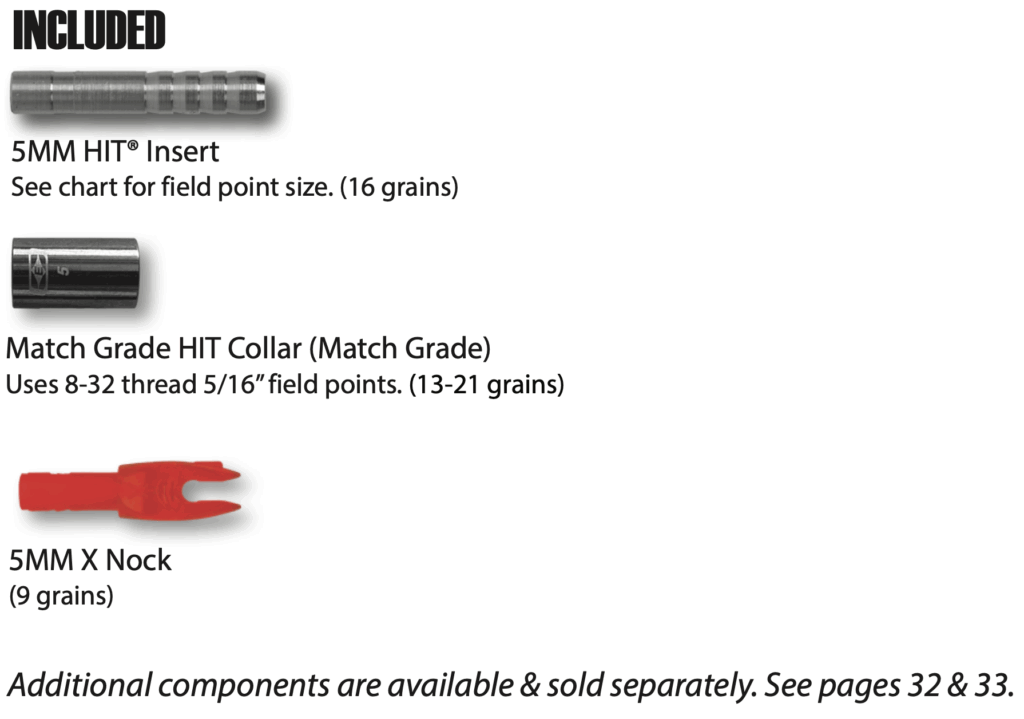

  • 5MM HIT 8-32 inserts included (16 grains)
  • 5MM small-diameter carbon-core with 7075-alloy metal jacket FMJ Construction
  • Pre-installed 5mm (X) nocks (9 grains)
  • Easy target pull
  • Easy to find orange anodized finish
  • Straightness +/- .002”
  • Made in USA



250, 300, 340, 400 spines

Factory 6-pack Fletched with 2” Bully Vanes by Bohning

Factory 36/72-pack Fletched with 2” Bully Vanes by Bohning (Size dependent)

Dozen Bare Shafts

*6 pack boxes come in 32″ stock length only.

SOLD SEPARATELY: NEW 5mm Match Grade HIT Collar (13-21 grains), 5mm Steel 8-32 Half-out (75 grains) & 5mm Brass HIT Break-off 8-32 Insert (50-75 grains)
