5mm Axis™ Traditional
| Size | Shaft Weight GPI | Spine @ 28″ Span Deflection in inches | Stock Length Inches | RPS Point O.D. Inches | Broadhead Adapter Ring (5 grains) | O.D. Inches | 5mm Half Out Size |
|---|---|---|---|---|---|---|---|
| 700 | 6.8 | 0.700 | 31.5 | 17/64 | BAR 3 | 0.245 | #1 |
| 600 | 7.9 | 0.600 | *32.25 | 17/64 | BAR 3 | 0.253 | #1 |
| 500 | 8.9 | 0.500 | *32.5 | 17/64 | BAR 3 | 0.261 | #1 |
| 400 | 9.8 | 0.400 | *32.75 | 9/32 | BAR 4 | 0.267 | #2 |
| 340 | 10.3 | 0.340 | *33 | 9/32 | BAR 5 | 0.270 | #2 |
*6 pack boxes come in 32″ stock length only.
Tap image to zoom in
ABOUT THE PRODUCT

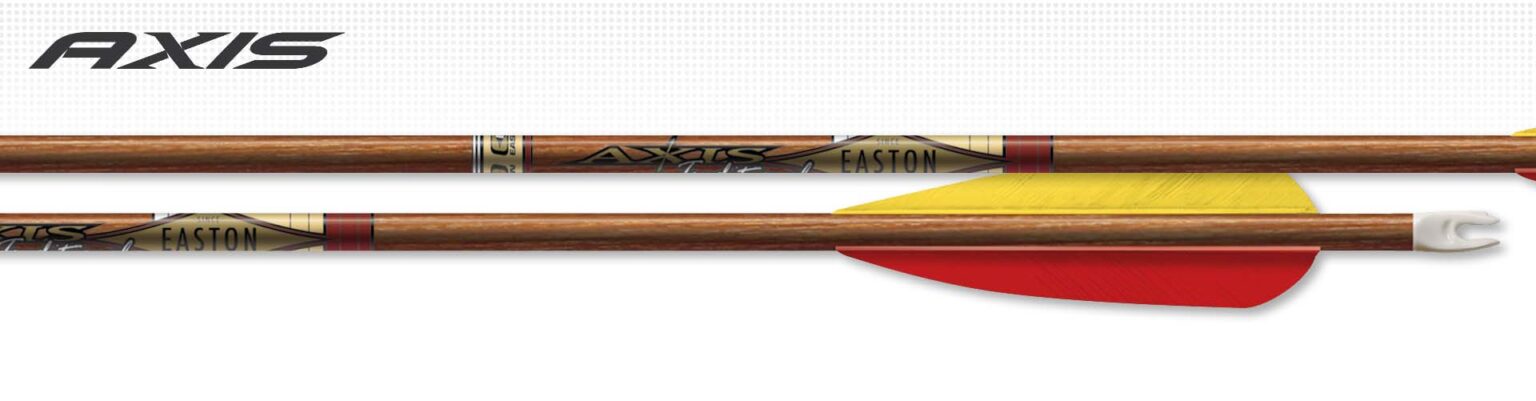

Carbon Axis and the appeal of original 1922 Doug Easton Traditional shafting. Nothing beats the look of natural wood grain.
(Discontinued)
SPECIFICATIONS

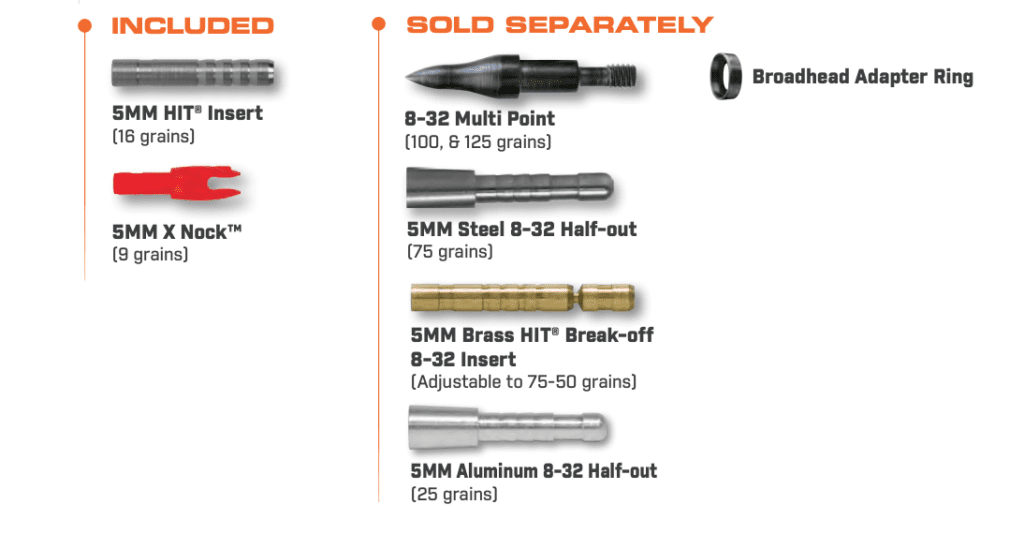

• 5mm X HIT 8-32 inserts included (16 grains)
• Pre-installed 5mm X Nocks
• Straightness: ± .003”
• High-strength carbon-composite fibers
• 5mm uniform USA made ACU-CARBON
Brass X HIT® 8-32 Break-Off Insert & Deep Six thread RPS sold separately
