4MM FMJ®

SizeShaft Weight
(GPI)
Spine @ 28″ Span
(Deflection in inches)
Stock Length
(Inches)
Deep Six Field Point
100 Grains (optional)
8-32 Field Point
(Inches)
O.D.
(Inches)
4MM Halfout
(size)
4mm Nock Collar
(size)
4009.80.40031.5DP6-55/160.234#2#5
34011.00.34032DP6-55/160.240#3#6
30011.70.300*32.5DP6-65/160.244#4#7
25012.30.250*33DP6-65/160.247#5#8
ABOUT THE PRODUCT

Pull out all the stops with Easton’s 4MM Full Metal Jacket. 4MM FMJ is an ultra-micro diameter shaft that offers less wind drift and minimizes friction to provides the industry’s best penetration.  Precision-made in Easton’s USA factory, FMJ features a lightweight, strong carbon backbone with the added KE and accuracy of a precision -drawn aluminum jacket.   4MM Full Metal Jacket is offered in four spines sizes from 400 to 250 to cover virtually all bowhunting setups.   Aluminum 8-32 point outsert come standard.  Compatible with Easton’s 4MM Match Grade Halfouts.

4mm FMJ
4mm FMJ Match Grade
SPECIFICATIONS

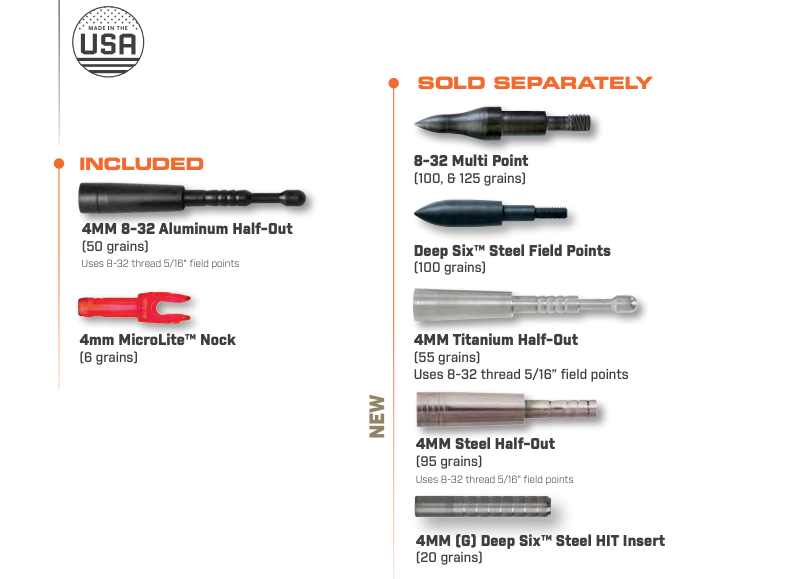

  • 4mm 8-32 Aluminum Half-out included (50 grains)
  • 4mm ultra micro diameter carbon core with 7075 alloy jacket
  • Pre-installed 4mm Microlite nocks
  • Easy target pull
  • Straightness +/- .002” (Also available in ±.001” Match Grade version)
  • Made in the USA

SOLD SEPARATELY: 4mm Nock Collar, 4mm Titanium Half-out (55 grains), 4mm Steel Half-out (95 grains), 4mm (G) Deep Six Steel HIT Insert (20 grains) & NEW 4mm Match Grade Half-outs (4 weight/material options)

*Six-pack boxes come in 32″ stock length only.
