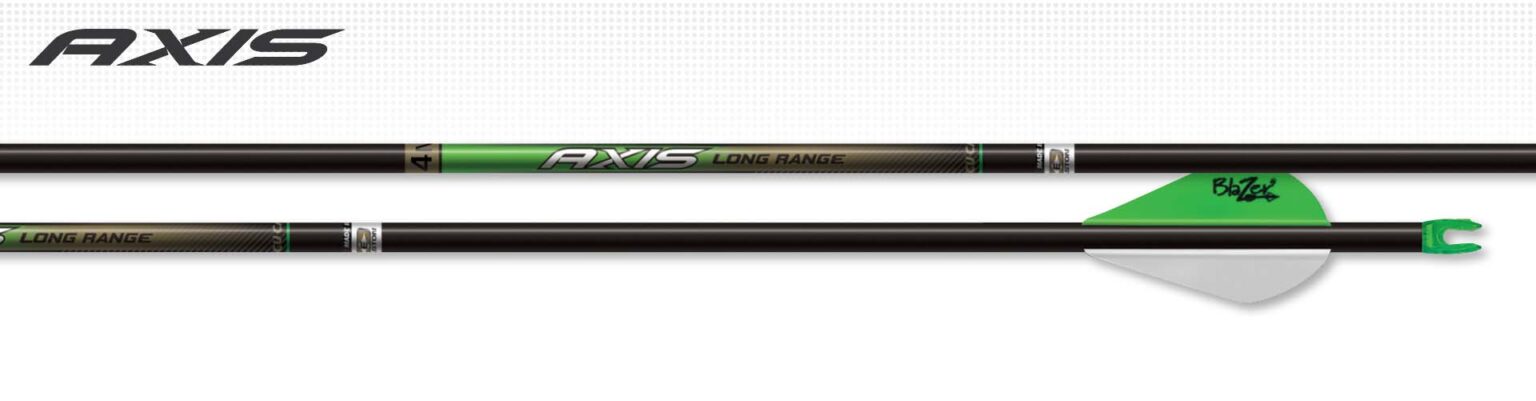

4MM Axis™ Long Range
| Size | Shaft Weight (GPI) | Spine @ 28″ Span (deflection in inches) | Stock Length (inches) | Deep 6 Field Point 100 Grains (optional) | 8-32 Field Point (inches) | O.D. (inches) | 4MM Halfout (size) | 4mm Nock Collar (size) |
|---|---|---|---|---|---|---|---|---|
| 250* | 9.8 | 0.250 | *33″ | DP6-6 | 5/16 | 0.244 | #4 | #7 |
| 300* | 9.3 | 0.300 | *32.5″ | DP6-6 | 5/16 | 0.241 | #3 | #6 |
| 340 | 8.3 | 0.340 | 32″ | DP6-4 | 5/16 | 0.234 | #2 | #5 |
| 400 | 7.6 | 0.400 | 31.5″ | DP6-4 | 5/16 | 0.229 | #1 | #4 |
ABOUT THE PRODUCT
Get more distance with 4MM ultra micro diameter AXIS Long Range. Made in Easton’s Utah factory, the AXIS Long Range is engineered with specialized carbon-fiber to increase arrow velocity. 4mm nocks and front-of-center boosting 8-32 halfouts are included to tighten arrow grouping n the target. 4MM AXIS Long Range is available in four sizes, 250, 300, 340, and 400 in both standard straightness and in the ultra-precise ±.001 Match Grade. AXIS Long Range promises more speed to the target, driving broadheads deeper upon impact. Includes precisely machined aluminum halfouts to boost strength and front-of-center accuracy at long range.
SPECIFICATIONS
- Ultra micro diameter, all-carbon construction
- Lighter weight for increased velocity
- Micro profile reduces friction in flight for added speed at impact and deeper penetration
- Higher FOC for accuracy at long range
- Four popular hunting spine sizes 250, 300, 340, and 400

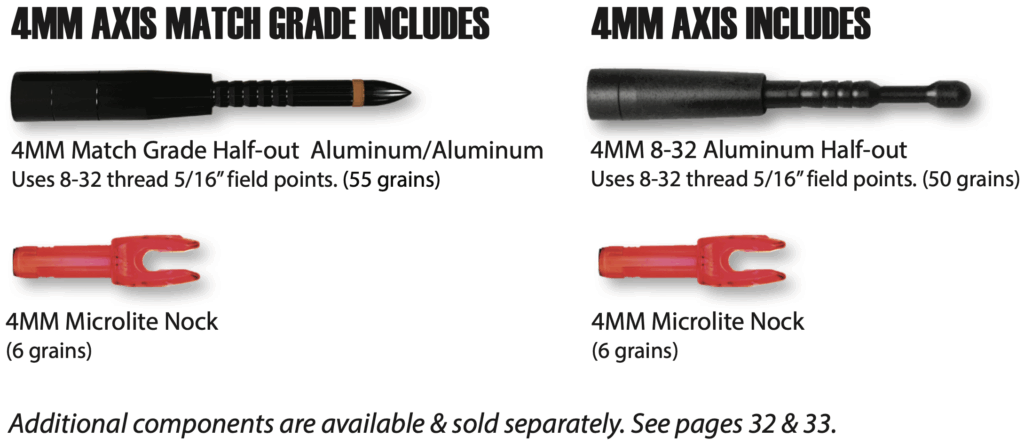

- Includes 4mm 8-32 Aluminum Half-outs (50 grains) and pre-installed 4MM Microlite nocks (6 grains)
- Comes in dozen bare shafts, and ½ dozen fletched configurations (compatible with standard thread 8-32 broadheads and field points)
- Made in USA
- Straightness: +/- .003″ (Match Grade: +/- .001″ with 55-grain inserts)
SOLD SEPARATELY: 4mm Steel Half-out (95 grains), 4mm Titanium Half-out (55 grains), 4mm Deep Six Steel HIT Insert (20 grains) & 4mm Match Grade Half-outs (4 weight/material options).
*6 pack boxes come in 32″ stock length only.
