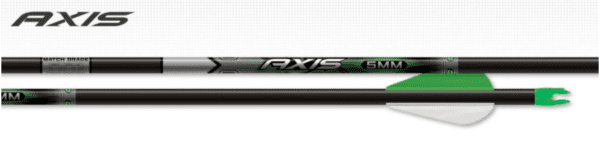

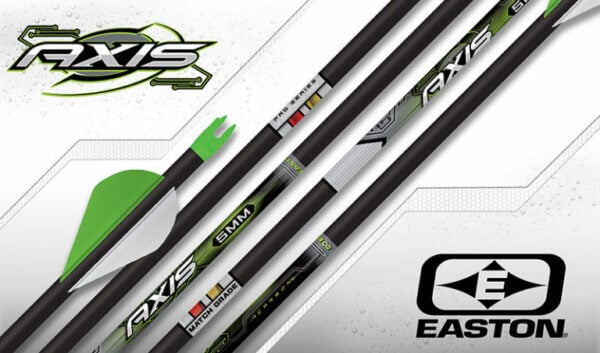

5mm Axis & Axis Match Grade


Axis -the shaft that launched the small diameter revolution!  Featuring the rock-solid reliable HIT insert system and the correct spine size available for any bowhunter, AXIS is one of the world deadliest arrow designs  – ever.

The perfect blend of penetration and speed.

A favorite choice for serious bowhunters looking for deep-penetrating big game performance. AXIS carbon arrows deliver the extreme penetration of micro-diameter carbon, while Hidden Insert Technology aligns broadheads for greater accuracy.


SKU N/A Categories , ,
Product categories


5mm Axis & Axis Match Grade
  • Pre-installed X Nock
  • X HIT conventional thread inserts
  • Brass X HIT conventional thread break-off inserts—sold separately
  • High-strength carbon-composite fibers
  • Straightness: ±.003″
Size Shaft Weight
Spine @ 28″ Span
Deflection in inches
Stock Length
RPS Point
O.D. Inches
Broadhead Adapter Ring (5 grains)O.D.
5MM Half Out
7006.10.70031.517/64BAR 3.0245#1
6007.20.60030.517/64BAR 3.0253#1
5008.10.5003117/64BAR 30.258#1
4009.00.40031.517/64BAR 40.264#2
3409.50.340329/32BAR 50.267#2
30010.70.30032.59/32BAR 60.275#2
26011.50.26034*9/32BAR 60.280#2
20012.020034*9/32BAR 60.286#2
